How to get the Tracking Page Access Link via the API

How to get the Tracking Page Access Link via the API

All consignments that have been created in MachShip will have a linked MachShip tracking page that can be accessed publicly.

This link sends the user to a branded webpage that shows all of the details of the consignment as well as live tracking updates.

The consignment tracking link is made up of two parts:
  1. Base URL - the URL of the webpage, which is the same for all consignments
  2. trackingPageAccessToken - unique to every consignment
The outcome is a tracking page URL that takes the following form:



Note: To get the consignment tracking link in the MachShip UI, kindly refer on this link.

Step 1: Select a Base URL to Use

A consignments MachShip tracking pages are can be accessed by taking one of the URLs below:
- V1 Tracking Page - https://live.machship.com/tracking/#/consignments/
- V1 Tracking Page (Shortened) - https://mship.io/
- V2 Tracking Page - https://live.machship.com/trackingv2/#/consignments/
- V2 Tracking Page (Shortened) - https://mship.io/v2/

The URL you select is up to you - I recommend you check both and choose the one you like best.
  1. V1 URL produces a tracking page with a traditional design
  2. V2 URL produces a more modern design
Note, the shortened URL redirects to the related long URL and is useful for systems where the you have a shorter character limit.

Step 2: Obtain the TrackingPageAccessToken via the MachShip API:

Below is the sample response from the MachShip API which contains the trackingPageAccessToken

Via Create Consignment Endpoints

This access token is returned in the response to a create consignment API request via the following endpoints:
  1. /apiv2/consignments/createConsignment
  2. /apiv2/consignments/createConsignmentwithComplexItems

Via Get Consignment Endpoints

You can get the trackingPageAccessToken using the (GET Method) consignment call via the following endpoints:

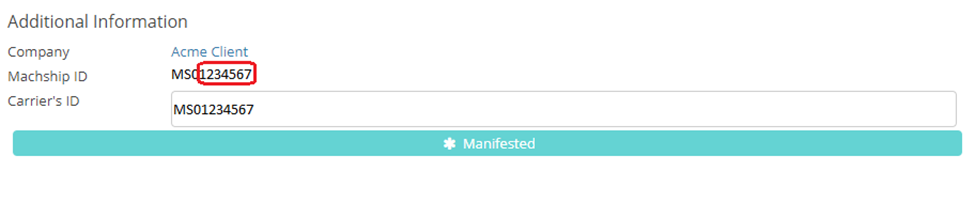

  1. /apiv2/consignments/getConsignment - passes thru via the consignment ID
  2. /apiv2/consignments/returnConsignments - can pass thru up to 10 con IDs in an array.

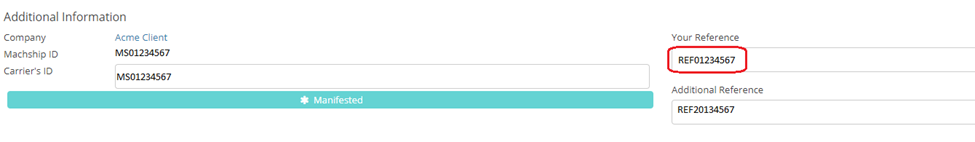

  3. /apiv2/consignments/returnConsignmentsByReference1 - passed thru via the consignment Reference ID

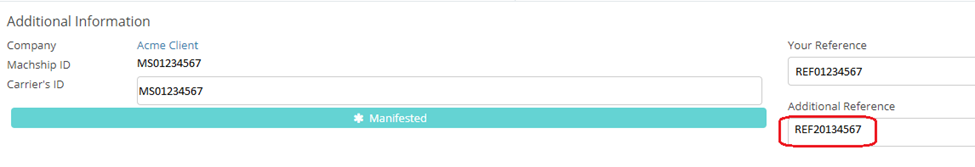

  4. /apiv2/consignments/returnConsignmentsByReference2 - passes thru via the consignment Reference ID2
  5. /apiv2/consignments/returnConsignmentsByCarrierConsignmentId - passes thru via the Carrier Consignment ID
  6. /apiv2/consignments/getRecentlyCreatedOrUpdatedConsignments - query for all consignments modified inside a date range, such as last hour or day.


Note: For further information/reference of the API endpoints/definitions, you may check out our swagger link under "CONSIGNMENTS" Section: https://live.machship.com/swagger/index.html#/
