When looking to set up a new account with TNT Express you will need to contact their IT department and advise them that you are looking to despatch your account through MachShip. You will also need to provide them with a setup form which is linked in the article below. Please indicate you are seeking to setup the TNT integration.

The team can be contacted at citservicedesk@tnt.com.au. Please cc integrations@machship.com in your email.

Your email should be as follows:

Hi CIT Team,

I need to set up my account <insert account code> with TNT Express so that I may consign with my new FMS partner MachShip. Can you please provide me with the following information:

• Username and Password to enable consignment creation with the below SOAP endpoint

https://www.tntexpress.com.au/webservices/conservice/ConsignmentService.svc

•  Username and Password to enable pickup booking with the below SOAP endpoint

http://www.tntexpress.com.au/Webservices/Booking.svc

•  Consignment Prefix
•  Sender Code
•  Username and Password to enable tracking at the following endpoint:

https://www.tntexpress.com.au/crt/TrackResultsRef.asp?User=strUser&Group=strGroup&ref=strRef&Password=strPwd

Can we also have the POD's sent to the MachShip Sftp directory?

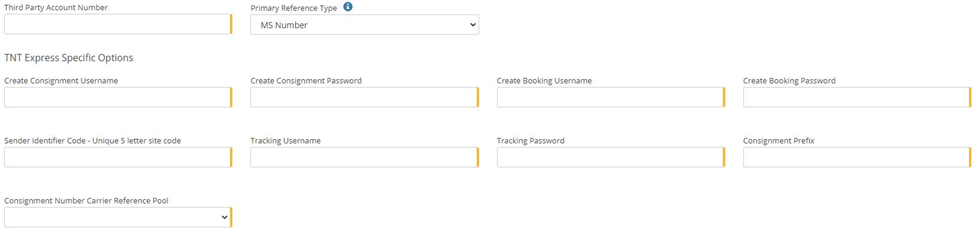

Once the TNT team responds then we need to fill out the specific options.

Third Party Account Code/Number - The account code would have been provided to you when your account was set up.

Create Consignment Username and Tracking Password -  This will be provided in the email above.

Create Booking Username and Tracking Password -  This will be provided in the email above.

Sender Identifier Code - Unique 5 Letter Site code -  Will be provided in the email above.

Tracking Username and Password -  Will be provided in the email above.

Consignment Prefix - Will be provided in the email above.

Reference Pools - Reference pools are utilised by MachShip in order to maintain a count on connote, manifest and item numbers. The reference pool will ensure that each of those numbers is unique to what we have sent to the carrier previously. More information can be obtained on reference pools here. TNT requires the creation of just 1 reference pool, for the Connote number.

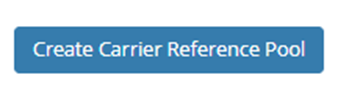

To create the reference pool select the Create Carrier Reference Pool button at the bottom of the page.

If you are creating a new account then the Reference Pools will be set to the following fields:

Pool Name - Set as TNT Connote Pool <Account Code>
Minimum Value - 1
Maximum Value - 999999999 (that is nine 9's)
Next Value -  1
Cyclical - No

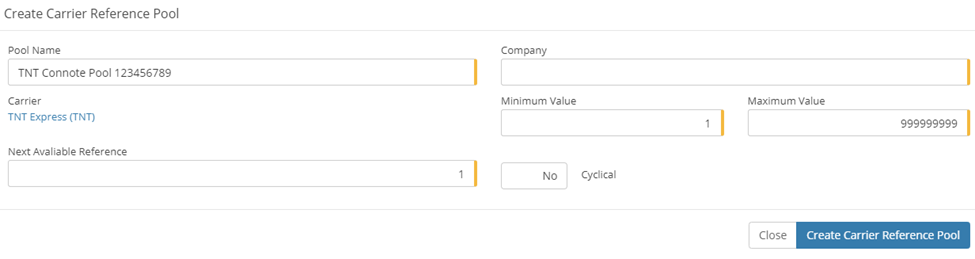

It will appear as below:

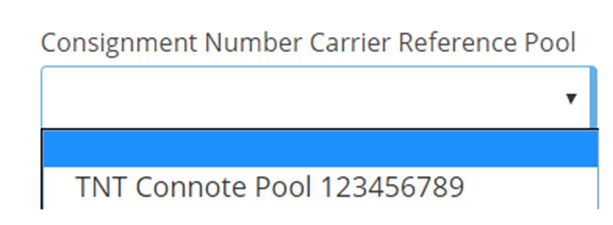

Once created it will appear in the drop-down as below:

Test:

Once the account has been set up and all of the rates have been added, you will need to run a test to ensure that upon go-live, everything will run successfully. To do this, create a consignment - please make Reference 1 and Reference 2 and the delivery special instructions THIS IS A TEST. Once this has been created please manifest the consignment to the carrier. If you experience any issues please contact support@machship.com.

If you receive a successful manifest message from MachShip then please send an email to citservicedesk@tnt.com.au and advise them that you are starting to despatch your TNT Express account through MachShip and that you would like to receive verification on the test file and permission to start to trade. Please include the label pdf's for the manifest and the connote.

Advise the support team of the connote number and request that they should cancel this to ensure that you are not charged. Please cc integrations@machship.com on this email so we can help if required.

On confirmation from the support team that the setup is validated, you are free to begin to consign.
