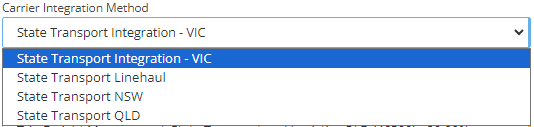

MachShip has the capability to integrate with State Transport via different integration types:

Select the appropriate integration method based on where your account was created.

For example, if your account has been created under State Transport QLD - then use the integration method "State Transport QLD".

When looking to set up a new account with State Transport and Logistics you will need to set the specific options below:

Account Code - The account code would have been provided to you when your account was set up.

Reference Pools - Reference pools are utilised by MachShip in order to maintain a count on the connote, manifest and item numbers. The reference pool will ensure that each of those numbers is unique to what we have sent to the carrier previously. More information can be obtained on reference pools here. State Transport and Logistics require the creation of just 1 reference pool, for the Manifest number.

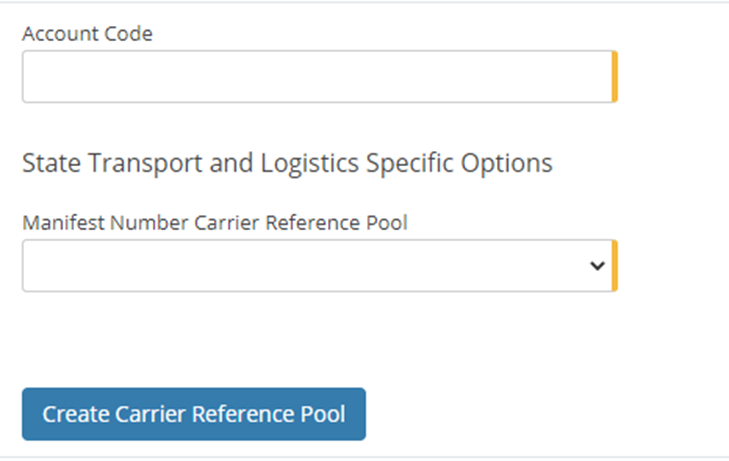

To create the reference pool select the Create Carrier Reference Pool button at the bottom of the page.

If you are creating a new account then the Reference Pools will be set to the following fields:

Pool Name - Set as State Transport and Logistics Manifest Ref Pool <Account Code>
Minimum Value - 1
Maximum Value - 999999 (that is six 9's)
Next Value -  1
Cyclical - No

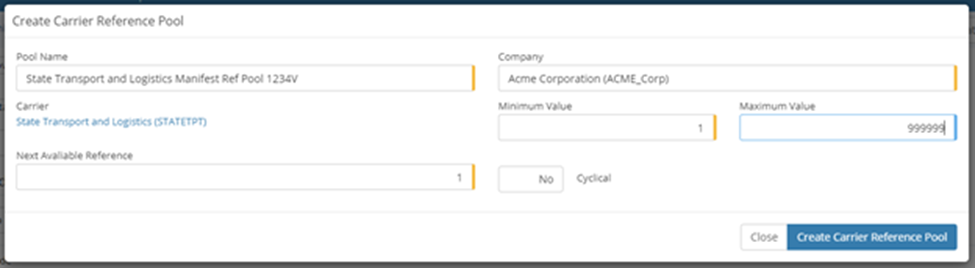

It will appear as below:

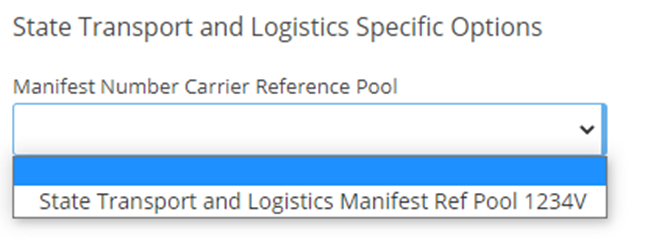

Once created it will appear in the drop-down as below:

Ratecard:

State Transport and Logistics are configured to price off the Carriers System and as such you will need to extract and upload the ratecard in the below format. This will contain all the available services for the State Transport and Logistics local movements.

Notes:

1. Set your Account Code in the Ratecard Section

2. Please set the from zone and to zone as required

Carrier	Ratecard	Service	From Zone	To Zone	Reciprocal	Cubic Conversion	Basic	Minimum	Break Type	Item Type	Break From	Break To	Price
STATETPT		1H			N	0	0	0	WEIGHT		0		0
STATETPT		12H			N	0	0	0	WEIGHT		0		0
STATETPT		12G			N	0	0	0	WEIGHT		0		0
STATETPT		12L			N	0	0	0	WEIGHT		0		0
STATETPT		12T			N	0	0	0	WEIGHT		0		0
STATETPT		14H			N	0	0	0	WEIGHT		0		0
STATETPT		14G			N	0	0	0	WEIGHT		0		0
STATETPT		14L			N	0	0	0	WEIGHT		0		0
STATETPT		14T			N	0	0	0	WEIGHT		0		0
STATETPT		2H			N	0	0	0	WEIGHT		0		0
STATETPT		2T			N	0	0	0	WEIGHT		0		0
STATETPT		2V			N	0	0	0	WEIGHT		0		0
STATETPT		22L			N	0	0	0	WEIGHT		0		0
STATETPT		22T			N	0	0	0	WEIGHT		0		0
STATETPT		38M			N	0	0	0	WEIGHT		0		0
STATETPT		24L			N	0	0	0	WEIGHT		0		0
STATETPT		24T			N	0	0	0	WEIGHT		0		0
STATETPT		4H			N	0	0	0	WEIGHT		0		0
STATETPT		4G			N	0	0	0	WEIGHT		0		0
STATETPT		4L			N	0	0	0	WEIGHT		0		0
STATETPT		4T			N	0	0	0	WEIGHT		0		0
STATETPT		6H			N	0	0	0	WEIGHT		0		0
STATETPT		6G			N	0	0	0	WEIGHT		0		0
STATETPT		6L			N	0	0	0	WEIGHT		0		0
STATETPT		6T			N	0	0	0	WEIGHT		0		0
STATETPT		8H			N	0	0	0	WEIGHT		0		0
STATETPT		8G			N	0	0	0	WEIGHT		0		0
STATETPT		8L			N	0	0	0	WEIGHT		0		0
STATETPT		8T			N	0	0	0	WEIGHT		0		0
STATETPT		BD			N	0	0	0	WEIGHT		0		0
STATETPT		CD			N	0	0	0	WEIGHT		0		0
STATETPT		CD1			N	0	0	0	WEIGHT		0		0
STATETPT		1TD			N	0	0	0	WEIGHT		0		0
STATETPT		UVD			N	0	0	0	WEIGHT		0		0
STATETPT		CE			N	0	0	0	WEIGHT		0		0
STATETPT		1TE			N	0	0	0	WEIGHT		0		0
STATETPT		UVE			N	0	0	0	WEIGHT		0		0
STATETPT		GEN			N	0	0	0	WEIGHT		0		0
STATETPT		1T			N	0	0	0	WEIGHT		0		0
STATETPT		1V			N	0	0	0	WEIGHT		0		0
STATETPT		CS			N	0	0	0	WEIGHT		0		0
STATETPT		1TS			N	0	0	0	WEIGHT		0		0
STATETPT		UVS			N	0	0	0	WEIGHT		0		0



Test:

Once the account has been set up and all of the rates have been added, you will need to run a test to ensure that upon go-live, everything will run successfully. To do this, create a job- please make Reference 1 and Reference 2 and the delivery special instructions THIS IS A TEST. Once this has been created it will be booked in with the carrier.

If you receive a successful manifest message from MachShip then please send an email to the State Transport and Logistics Team and advise them that you are starting to despatch your State Transport and Logistics account through MachShip and that you would like to receive verification on the test file and permission to start to trade.

Please include the job number and request that they should cancel this to ensure that you are not charged. Please cc integrations@machship.com on this email so we can help if required.

On confirmation from the support team that the setup is validated, you are free to begin to consign.
